BMC Teammachine SLR01 ONE

BMC Teammachine SLR01 ONE
$9,099.00
$12,999.00
Color:
Deep Sea/Neon Red
Size:
54cm
Please select options Unavailable

Details

10 YEARS IN THE LEAD

10 years ago, we launched a bike that kickstarted a revolution in the design and construction of the performance road bike. The Teammachine SLR, has won every major title that a bike can win including; Monuments, World Championships, Olympic Games and the Tour de France.

Using the combined knowledge from the past decade, we've changed the game again to deliver an all-new, class-leading frameset ready to lead for another 10 years.

ACCELERATED COMPOSITES EVOLUTION TECHNOLOGIE + (ACE+)
ACE+ not only runs through thousands of virtual prototypes using Stiffness, Weight, and Compliance as key influencers, but now includes a fourth key factor in the prototyping, Aerodynamics.

INTEGRATED COCKPIT SYSTEM (ICS) CARBON
ICS Carbon, is a one-piece cockpit with an incredible low weight, high stiffness, stealth cable routing and integrated device mounts for the most popular devices.

D-SHAPE SEAT POST
Improved seatpost design removing any excess materials, providing aerodynamic benefits and extra compliance.

BOTTOM BRACKET AND TORSIONAL STIFFNESS
Renowned for its power transfer, the new Teammachine SLR goes one step further with a wider bottom bracket contact area provided by the new downtube shape and the optimized carbon layup.

FORK PROFILE
An aerodynamically reshaped fork with stealth dropout design and integrated thru-axle nut show that high technical proficiency can go hand in hand with beautiful, minimalist aesthetics.

AEROCORE DESIGN
Our Aerocore system consists of two superlight carbon cages that seamlessly integrate into the reshaped downtube and seat tube, resulting in significant drag reduction when used with bottles.

COMFORT IS SPEED
The new Teammachine SLR is more compliant than ever, thanks to the latest evolution of the Tuned Compliance Concept (TCC) technology. Fine-tuning of the carbon layups, essential vertical frame and seatpost flex, to improve traction and control, resulting in reduced muscle fatigue.

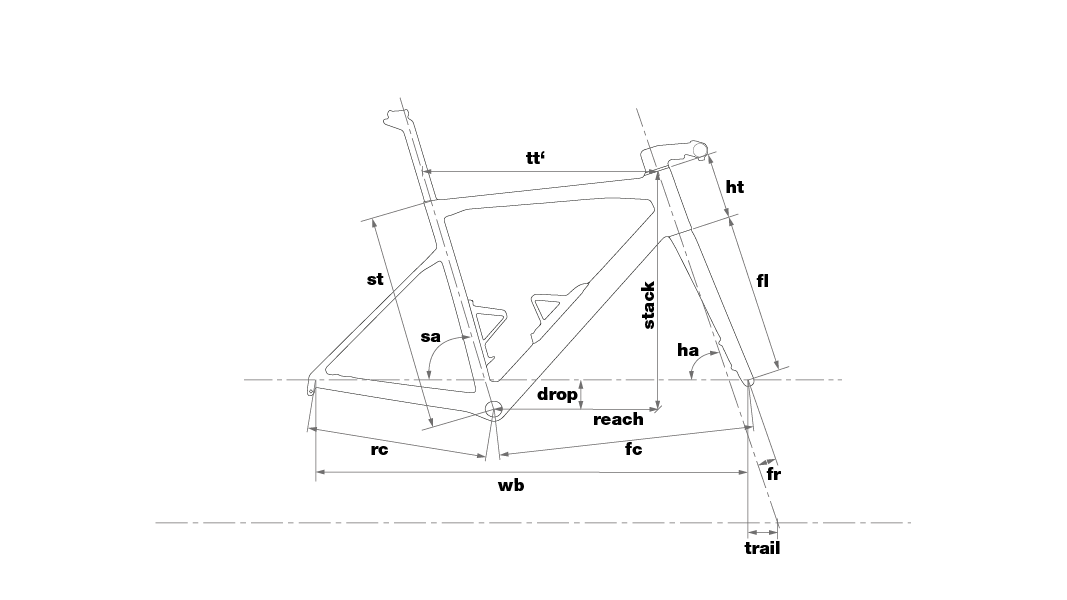

Geometry

Geometry Chart:
SIZE475154565861
Rider Height CM <166 166-174 172-180 178-186 184-192 >190
Top Tube MM (tt) 517 534 549 559 574 589
Wheelbase MM (wb) 968 986 989 1000 1015 1030
Seat Tube Angle (sa) 73.5 73.5 73.5 73.5 73.5 73.5
Seatpost Length MM 330 380 380 380 380 380
Stack MM 506 530 550 565 584 608
Trail MM (trail) 63 63 63 63 63 63
Rear Center MM (rc) 410 410 410 410 410 410
Reach MM (reach) 367 377 386 392 401 409
Head Tube MM (ht) 110 130 145 165 184 210
Head Angle (ha) 71.5 71.5 72.3 72.3 72.3 72.3
BB Drop MM (drop) 69 69 69 69 69 69
Stem Length MM 90 100 100 110 110 120
Seat Tube MM (st) 423 468 504 524 545 574
Stem Angle -12.5 -12.5 -12.5 -12.5 -12.5 -12.5
Post Offset MM 15 15 15 15 15 15
Crank Length MM 170 170 172.5 172.5 175 175
Fork Rake MM (fr) 48 48 43 43 43 43
Front Center MM (fc) 568 586 589 599 614 630
Fork Length MM (fl) 368 368 368 368 368 368
Bar Width MM 400 420 420 420 420 420
Bar Reach MM 67 67 67 67 67 67
Bar Drop MM 127 127 127 127 127 127
Standover Height mm 717 752 779 797 817 843

Specs

Frame Teammachine SLR 01 Premium Carbon with Aerocore Design
Fork Teammachine SLR 01 Premium Carbon
Rims DT Swiss PRC 1100 DISC MON CHASSERAL, 24mm
Hubs DT Swiss 180 Straightpull, Ratchet EXP 36, SINC Ceramic Bearings
Tires Pirelli P ZERO RACE TLR SL
Bottom Bracket PF86 Bottom Bracket
Crankset SHIMANO Dura Ace 52-36T
Chainrings SHIMANO Dura Ace 52-36T
Shifters SHIMANO Dura Ace Di2
Front Derailleur SHIMANO Dura Ace Di2
Rear Derailleur SHIMANO Dura Ace Di2
Cassette/Freewheel SHIMANO Dura Ace 11-30T
Chain SHIMANO Dura Ace
Brakes SHIMANO Dura Ace, RT900 Rotors (160/140)
Handlebars ICS Carbon, One-Piece Full Carbon Cockpit
Stem ICS Carbon, One-Piece Full Carbon Cockpit
Seatpost Teammachine SLR 01 Premium Carbon D-Shaped Seatpost, 15mm Offset
Saddle Fizik Argo Vento 00 140mm
Pedals Sold separately
Accessories & Extras Integrated Aerocore Bottle Cages

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Deep Sea/Neon Red / 54cm 07630027869859 30001220 210000057700
